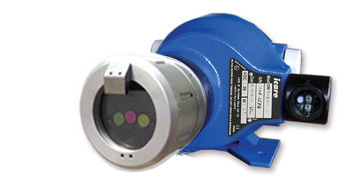

The Simtronics DM-TV6-T MultiFlame is an aluminum multi-spectrum infrared flame detector with 3-wavelength anti-corrosion paint protection. It offers the best solution for the detection of fires generating a batch of smoke (bad combustion).
The MultiFlame Flame Detector DM-TV6-T is designed to detect hydrocarbon fires, while minimizing nuisance alarms.
This optical flame detector offers different outputs (measurements and states) and can be used on SIL 3 applications. The detector can be interfaced with a large number of fire panels, detection panels and industrial PLCs.
The DM-TV6-T MultiFlame flame detector is fully configurable thanks to the TLU600 portable terminal communication, offering the user great flexibility. Response time, sensitivity and output configuration are adjustable.
The TLU600 intrinsically safe portable terminal communication also allows the control of the optical and electronic parts of the detector and the outputs (current, relay).
Continuous optical self-tests
Wide detection range
Immunity against nuisance alarms
Relay outputs, 4-20mA, 0-22mA, as standard
Optional 4-20mA / Hart output
SIL 3
|
Technology |
Infrared multi-spectrum, 3IR |
|
Fires detected |
Hydrocarbons and carbon compounds |
|
Scope of detection * |
N-heptane lights 80m, gasoline 65m * long-range detector, tray 0.3 x 0.3m |
|
Field of view |
Maximum horizontal angle 1 20 ° Horizontal angle 50% of range 1 04 ° Vertical angle 50% of range 82 ° |
|
Response time |
Adjustable from 3 to 20 seconds (typical 6 sec.) |
