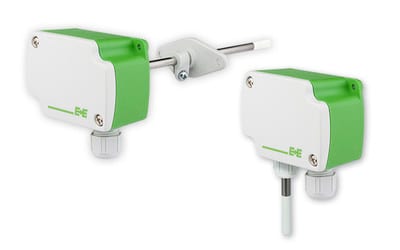

The EE150 humidity and temperature transmitter has been optimised specifically for use in the HVAC and building automation and impresses with an outstanding price/performance ratio.
The clever housing concept, the compact design and the Ø 6mm probe simplify istallation, which results in minimised installation costs.
The IP65/NEMA 4 enclosure provides optimal protection of the electronics, while the capacitive E+E humidity sensor element stands for long-term stable measurement results.
Voltage or current analogue outputs
Optional passive T-output
IP65/NEMA 4 enclosure
∅ 6mm stainless steel probe
Teflon protection cap
Resistant to pollution
Easy mounting
User configurable and scalable
Free configuration software
|
WORKING RANGE |
10...90% RH -5...55°C (23...131°F) |
|
ACCURACY |
±3% RH (30...70% RH), otherwise ±5% RH ±0.3°C |
|
ANALOG OUTPUT |
0-10 V or 4-20 mA (2-wire) |
|
POWER |
24 V AC/DC |
