Data sheet

EE23

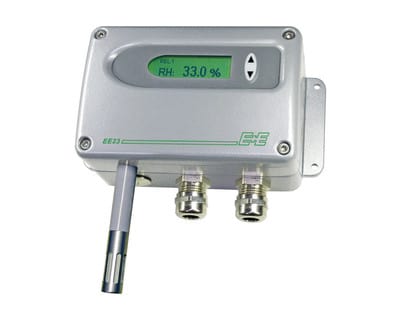

The EE23 is a cost optimised transmitter for industrial and high-end HVAC applications up to 120°C (248°F). Relative humidity and temperature are accurately measured and dew/frost point temperature precisely calculated.

Various models are available including wall, duct, remote probe as well as a version with miniature remote probe for applications with limited space. The three-part design of rugged enclosure in polycarbonate or aluminium allows easy mounting and replacement.

The measurands are available on two analogue outputs and an optional relay output. The optional proprietary coating protects the sensor elements against corrosive and electrically conductive pollution. Field adjustment can be easily performed with push buttons

  • Measurands: humidity (RH), temperature (T), dew point (Td), frost point (Tf)

  • Rugged enclosure in polycarbonate or aluminium

  • Flexible enclosure concept for easy mounting and unit exchange

  • Two analogue or alarm outputs

  • Wall, duct, remote probe and miniature remote probe types available

  • Wide choice of filter caps according to application

  • Optional connector for power supply and outputs

  • Optional LCD display Optional integrated power supply

  • Optional sensor coating for polluted environments

  • Easy field adjustment by the user

MEASURING RANGE

0...100% RH

-40...120 °C (-40...248 °F)

ACCURACY

±1.3% RH

±0.2 °C (±0.36 °F)

OUTPUTS

0-5/10 V, 0/4-20mA

POWER

24 V AC/DC
