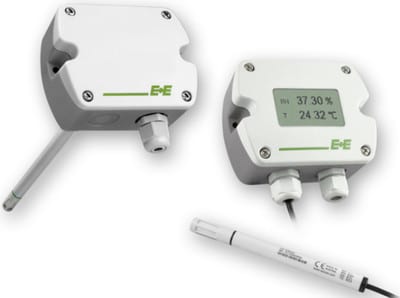

The EE210 is the ideal transmitter for high accuracy measurement of relative humidity and temperature in demanding air conditioning applications.
Thanks to the measurement electronics encapsulated inside the sensor and the exclusive E + E protection of the humidity sensor, the EE210 can be used even in harsh and aggressive environments.
Wall, conduit and remote probe
Voltage and current analog outputs freely configurable by the user
BACnet MS / TP or Modbus RTU interface
Optional display
High accuracy
Exceptional temperature compensation
Better protection against condensation and pollution
Very robust detection head
Easy assembly
Calculated physical quantities
Dew point temperature
Freezing point temperature
Absolute humidity
Mixing rate
Partial pressure of water vapor
Specific enthalpy
|
MEASURING HUMIDITY RANGE |
0...100% RH |
|
ACCURACY HUMIDITY |
-15...40 °C <90% RH ±(1.3+0.003*mv)% RH -15...40 °C >90% RH ±2.3% RH -40...60 °C ±(1.5+0.015*mv)% RH |
|
TEMPERATURE RANGE |
-40...60 °C (-40...140 °F) |
|
PRECISION TEMPERATURE |
±0.2 °C (0.34°F) |
|
ANALOGUE OUTPUTS |
0-5/10 V or 4-20 mA |
|
DIGITAL OUTPUT |
BACnet MS/TP or Modbus RTU |
|
POWER |
24V AC/DC |
