Data sheet

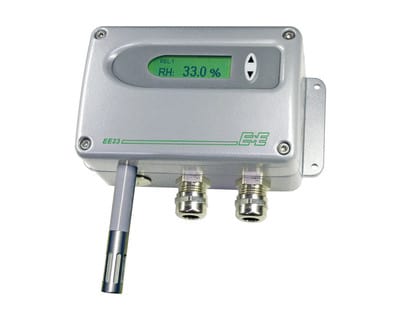

The EE23 is a cost-optimized transmitter for industrial and high-end HVAC applications up to 120 ° C (248 ° F).

Relative humidity and temperature are precisely measured and the dew / gel temperature is accurately calculated.

Different models are available: wall, duct, remote sensor, as well as a version with miniature remote sensor for applications with limited space.

The three-piece design of a rugged polycarbonate or aluminum housing makes mounting and replacement easy.

The measurands are available on two analog outputs and an optional relay output.

The optional exclusive coating protects the sensor elements against corrosive and electrically conductive pollution.

On-site adjustment can easily be done with pushbuttons.

  • Measurements: humidity (RH), temperature (T), dew point (Td), freezing point (Tf)

  • Rugged polycarbonate or aluminum housing

  • Flexible enclosure concept for easy mounting and unit exchange

  • Two analog or alarm outputs

  • Wall, Conduit, Remote Probe and Miniature Remote Probe Types Available

  • Wide choice of filter caps depending on the application

  • Optional connector for power and outputs

  • Optional LCD display Optional integrated power supply

  • Optional sensor coating for polluted environments

  • Easy setting of the field by the user


0...100% RH

-40...120 °C (-40...248 °F)


±1.3% RH

±0.2 °C (±0.36 °F)


0-5/10 V, 0/4-20mA


24 V AC/DC
