HMC03M is optimized for short response time even at very low temperature in the upper atmosphere.

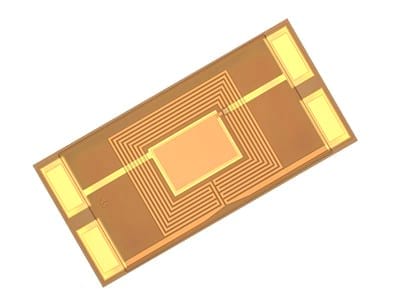

It combines on a silicon substrate a capacitive relative humidity sensor and a heating resistor (heater).
The heater is dedicated for fast recovery of the humidity sensor after condensation or icing. This leads to outstanding measuring performance in high-end weather observation.
Very short response time even at low temperature
Fast recovery after condensation or icing due to sensor heating
High sensitivity and outstanding linearity
|
NOMINAL CAPACITANCE C0 (AT 30 °C / 86 °F) |
120 ± 40 pF |
|
SENSITIVITY (FOR C0 = 120 PF, IN AVERAGE) |
0.41 pF / % RH |
|
RESPONSE TIME T63 (SEE GRAPH FOR DETAILS) |
< 8 sec. at -30 °C (-22 °F) < 11 sec. at -40 °C (-40 °F) |
|
WORKING RANGE TEMPERATURE |
-80...60 °C (-112...140 °F) |
|
WORKING RANGE HUMIDITY |
0...100 % RH |
|
LINEARITY (0...98% RH) |
< ± 2 % RH |
