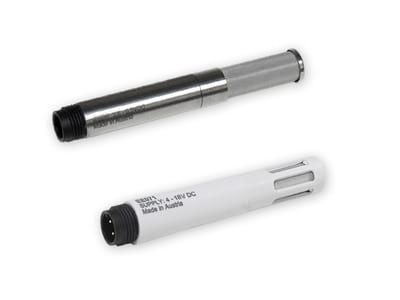

The EE071 accurately measures relative humidity and temperature and calculates physical quantitites such as dew point temperature, mixing ratio and absolute humidity.
The Modbus RTU digital interface allows for easy integration into networks. The compact design with M12 connector facilitates the installation and fast replacement of the probe.
The sensing element is perfectly protected against pollution and corrosion and stands for long term stability even in harsh environment. With an appropriate radiation shield EE071 is also suitable for outdoor applications.
Highest measurement accuracy
Excellent protection against pollution and corrosion
Outstanding long term stability
Wide working temperature range
Temperature compensation
Modbus RTU interface
Easy integration into networks
Low power consumption
Compact and easily interchangeable
Additional physical quantitites calculated
Adjustment and Modbus setup by the user
|
MEASURING RANGE HUMIDITY |
0…100 % RH |
|
ACCURACY HUMIDITY |
±2 % RH (0…90 % RH) ±3 % RH (90…100 % RH) |
|
MEASURING RANGE TEMPERATURE |
-40…80 °C (-40...176 °F) |
|
ACCURACY TEMPERATURE |
±0,1 °C at 23 °C |
|
OUTPUT |
Modbus RTU |
|
POWER |
4-28V DC |
