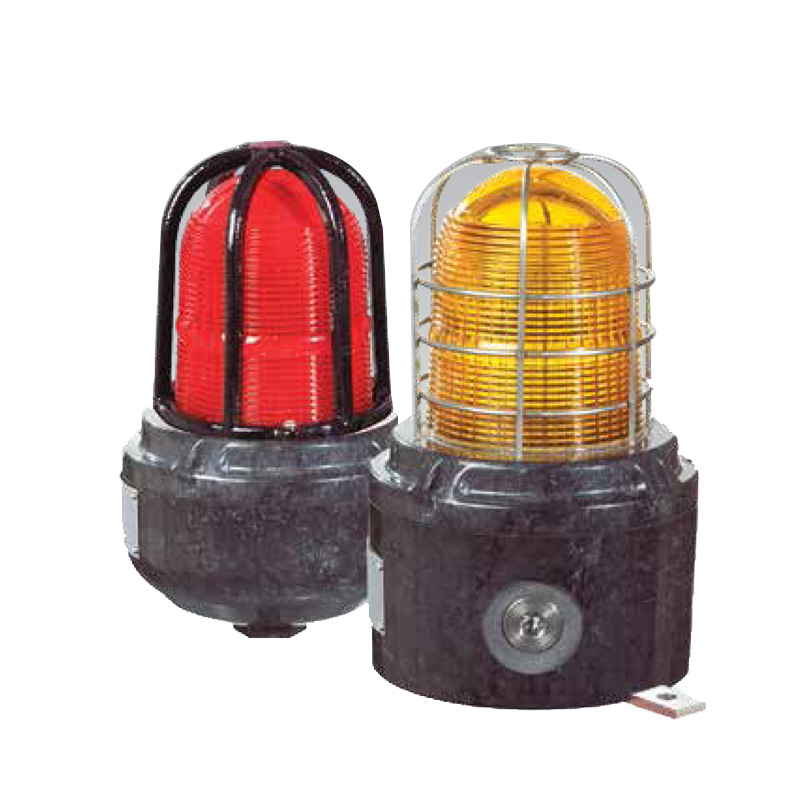

These certified beacons have been designed for use in potentially explosive atmospheres and harsh environmental conditions. The enclosures are suitable for use offshore or onshore, where lightweight combined with corrosion resistance is required.
The housings are manufactured completely from a UV stable, glass reinforced polyester. Stainless steel screws and mounting bracket are available ensuring a totally corrosion-free product.
The model XB15 contains a supervisory diode and four wire lead connections for alarm applications.
Units can be painted to customer specification and supplied with identification labels.
As well as the standard worldwide certificates EN54-23 and SIL1 are both now available.
As well as the XB15 being certified from -55°C to +70°C, the new control circuits have been designed to consistently energise at –55°C.
Zone 1 and Zone 2 use.
Exd IIC, T4/T5/T6.
ATEX approved, Ex II 2GD.
IECEx Certified Gb, Db.
UL listed for USA and Canada:
– Hazardous locations:
Class I, Div. 2, Groups A*, B*, C & D.
Class II, Div 2 Groups F & G.
Class I, Zone 1, AExd IIB & IIC* T4/T5/T6.
– Ordinary locations: Visual-Signal Device.
– Marine listed. *Not applicable for Canada
ULC Listed to Canadian Safety Standards
CUTR certified.
Chinese (CQST) certified.
ATEX Exd:
Cert. no. Baseefa 04ATEX0009X.
Certified to: EN60079-0, EN60079-1, EN60079-31.
Ex II 2GD, Ex d IIC T4/T5/T6 Gb. Ex tb IIIC T85°C/T100°C/T135°C Db.
IECEx Ex d:
Cert. no. IECEx BAS 05.0048X.
Certified to: IEC60079-0, IEC60079-1, IEC60079-31. Ex d IIC T4/T5/T6 Gb.
Ex tb IIIC T85°C/T100°C/T135°C Db.
UL Haz Locs:
Listing no. E187894.
Class I, Div 2, Groups A*, B*, C & D.
Class II, Div 2, Groups F & G.
Class I, Zones 1, AExd IIB & IIC* T4/T5/T6.
*Not applicable for Canada
