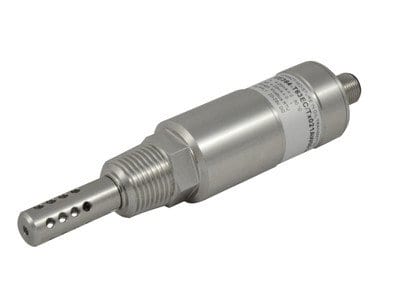

EE364 is a compact and robust oil moisture transmitter for in-line oil monitoring.
It is optimized for high accuracy and excellent long-term stability in lubricating, hydraulic and insulation oils, as well as in diesel fuel.
The water activity (aw) and temperature (t) are accurately measured and the water content (x) in ppm is accurately calculated.
EE364 has two 4-20 mA outputs and a Modbus RTU interface.
With an optional tamper cable it is possible to make a setting, to adjust the parameters of the MODBUS interface and to configure the analog outputs.
Measurements: water activity (aw), temperature and water content (x) in ppm
Oil temperature up to 100 ° C (212 ° F)
Two outputs 4 ... 20 mA
Modbus RTU interface
Rated pressure 20 bar
G ½ "ISO or ½" NPT process fitting
Freely configurable outputs by the user
|
MEASURING RANGE |
0...1 aw -40...80 °C (-40...176 °F) or -40...100 °C (-40...212 °F) |
|
PRECISION |
±0.02 aw ±0.2 °C (0.36 °F) |
|
OUTPUT |
2 x 4-20 mA / MODBUS RTU |
|
POWER |
10-28 V DC |
