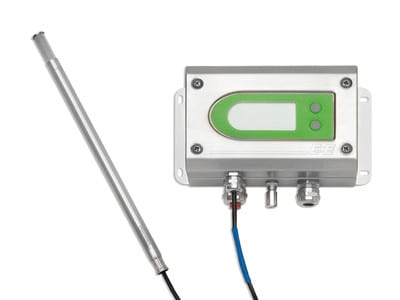

The EE300Ex humidity and temperature transmitter is dedicated to measurement in hazardous areas.

It complies with the classifications for Europe (ATEX), International (IECEx) and USA / Canada (FM) and can be used in areas at risk of gas and dust explosion.

The intrinsically safe EE300Ex can be installed in the explosion hazard zone even in 0/20 zones (Division 1).

The two-part housing makes installation and disassembly easy for calibration without cumbersome wiring.

The robust, easy-to-clean stainless steel housing is optimized for the pharmaceutical and chemical industries.

The proven E + E moisture sensor technology ensures reliable, long-term measurements in difficult applications.

In addition to measuring relative humidity and temperature, the EE300Ex calculates all moisture related parameters, such as dew point temperature [Td], wet temperature [Tw], absolute humidity [ dv], etc.

The intrinsically safe humidity and temperature transmitter has two 4-20 mA outputs in 2-wire technology.

Moisture measurement in oil:

In the same way as measuring moisture in the air, the EE300Ex is suitable for measuring moisture in the oil.

The water content of the oil can be expressed as absolute value in [ppm] or relative as water activity [aw].

Typical applications for the measurement of moisture in oil are in oil cleaning / drying systems or on oil rigs for online monitoring of lubricating oils and gears.
