Data sheet

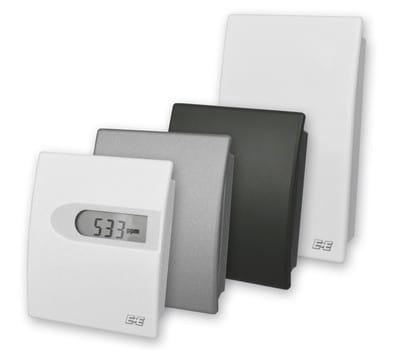

EE800

EE800 measures accurately CO2, temperature (T) and relative humidity (RH) in HVAC applications. Additionally, it calculates the dewpoint temperature (Td).

The E+E dual wavelength NDIR CO2 sensor compensates for aging effects, is highly insensitive to pollution and offers outstanding long term stability. A multiple point CO2 and T factory adjustment leads to excellent CO2 measurement accuracy over the entire T working range.

EE800 with analogue outputs features an optional passive T sensor, while EE800 with digital interface (Modbus RTU or BACnet MS/TP) calculates additional physical quantities: absolute humidity, mixing ratio, enthalpy, frost point temperature and water vapor partial pressure.

  • CO2, T, RH/Td in one room transmitter

  • BACnet, Modbus or analogue outputs

  • Optional passive temperature sensor

  • Auto-calibration for excellent long term stability

  • Temperature compensation

  • Highly insensitive to pollution

  • Snap-on enclosure for easy installation

  • Optional display

  • Easy user configuration and adjustment

WORKING RANGE CO2

0...2000 ppm

0...5000 ppm

ACCURACY CO2

< ±(50ppm + 2% of measuring value)

< ±(50ppm + 3% of measuring value)

WORKING RANGE HUMIDITY

10...90 % RH

ACCURACY HUMIDITY

±3 % RH (30...70 % RH)

±5 % (10...90 % RH)

WORKING RANGE TEMPERATURE

-20...60 °C (-4...140 °F)

ACCURACY TEMPERATURE

±0.3 °C (±0.54 °F) voltage output

±0.7 °C (±1.26 °F) current output

WORKING RANGE DEWPOINT

-30...55 °C (-22...131 °F)

ACCURACY DEWPOINT

< ±2 °C (3.6 °F) for /T/ - /Td/ < 25 °C (45 °F)

< ±3 °C (5.4 °F) for /T/ - /Td/ < 30 °C (54 °F)

OUTPUT ANALOGUE

0-5 V,0-10 V or 4-20 mA

OUTPUT DIGITAL

Modbus RTU or BACnet MS/TP

POWER

24 V AC/DC
