Data sheet

EE244

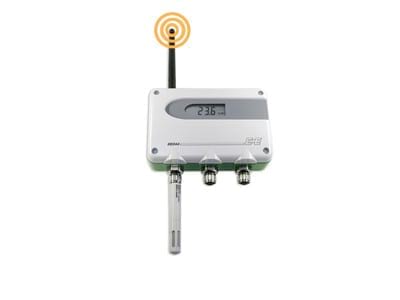

The EE244 modular wireless transmitter is based on the IEEE 802.15.4 protocol with a transmission frequency of 2.4 GHz and measures up to three physical quantities: relative humidity, temperature and CO2.

It accomodates up to 3 sensing probes, which can be plugger directly onto the EE244 basic unit or with a connection cable up to 10m long. The robust enclosure features an external antenna and an optional display.

EE244 wireless transmitter is powered by four alkaline AA batteries, but can also be connected to an external power supply. Depending on the number of probes, the physical quantities measured, and the sampling and transmission rate, the batteries may last up to 3 years.

  • Measurement of temperature, humidity and CO2

  • One wireless network can contain up to 500 transmitters

  • Pluggable, interchangeable probes

  • Remote sensors at up to 10 metres

  • Uses four 1.5 V AA standard batteries

  • Battery life of up to 3 years

  • External power supply possible

  • Optional display Interchangeable sensors from E+E

  • Robust enclosure with external antenna

MEASURING VALUES

Humidity, Temperature, CO2

TRANSMISSION FREQUENCY

2.4 GHz

TRANSMISSION SYSTEM

IEEE 802.15.4

TRANSMISSION POWER

10mW

RADIO RANGE

1000m in open field
