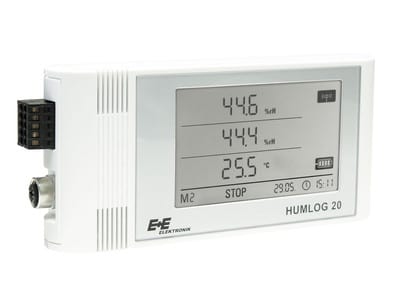

The HUMLOG 20 E data logger has a digital input and two analog inputs. Up to 4 digital humidity and temperature sensors LOGPROBE 20 can be connected to the digital input.
The analog inputs can accommodate:
4 ... 20 mA
0 ... 20 mA
0 ... 1 V
Pt100 3-wire
Pt100 4 wires
Thermocouple K, J, S
Continuous recording of data over long periods of time due to long battery life and large data memory.
Data loggers can operate in an Ethernet network.
Measured data is available in real time and can be viewed and saved simultaneously on a computer.
Maximum reliability of data acquisition thanks to integrated Ethernet interface.
Easy evaluation and visualization of measurement data.
The powerful SmartGraph3 software is included in the delivery.
Local visual and acoustic alarms for quick decisions in the field.
Modern speaker with big screen.
|
INPUTS |
Voltage, Current, Pt100, Thermocouple, Digital RH / T-Sensor |
|
INTERFACE |
USB and LAN (Ethernet) |
|
POWER |
4 x LRG AA or USB battery |
