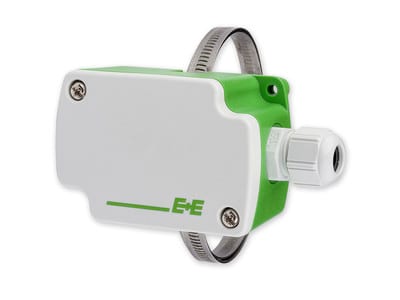

EE441 strap-on sensors are used for temperature measurementon round ducts and pipes.
Typical applications are heating systems (warm and coldwater pipes) and solar collectors.
In addition to active outputs 0-10 V or 4-20 mA various types of sensing elements such asPt1000, NTC10k or Ni1000 are available for passive temperature measurement.
The innovative IP65 housing and the mounting concept allow for fast and easy installation.
External mounting holes
Bayonet screws
Hose clamp
Aluminium contact surface
|
MEASURING RANGE PASSIVE OUTPUT |
-40…110 °C (-40...+230 °F) |
|
T-SENSOR CONNECTION |
two-wire |
|
MEASURING RANGE ACTIVE OUTPUT |
-40...70 °C (-40...158 °F) |
|
ACCURACY ACTIVE OUTPUT |
±0.3 °C (±0.54 °F) |
|
PROTECTION CLASS |
IP65 / NEMA 4 |
|
OUTPUTS |
0-10 V or 4-20 mA |
|
POWER |
24 V AC/DC |
