Data sheet

EE461-01

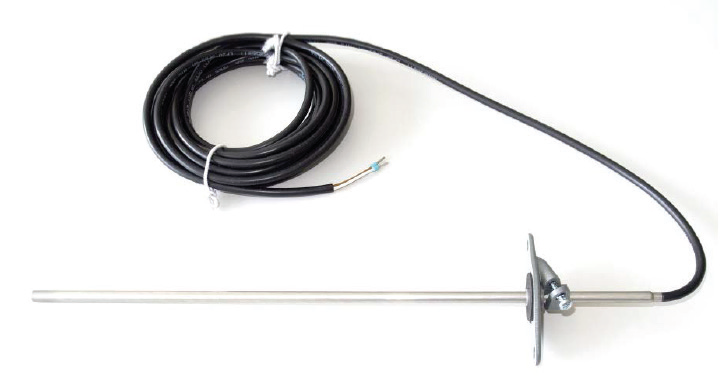

Cable sensors for temperature measurement are used inheating, ventilation and air conditioning systems as well asfor process control.

Several types of sensing elements such as Pt1000, NTC10kor Ni1000 are available.

Due to an innovative production concept (star pressing of thesensor sleeve) a high protection class IP67 can be provided.

All product-specific information is printed all along the cable.

  • High protection class

  • Cable labeling

  • Various sensing elements and cable lengths

OPERATING TEMPERATURE - EE461-01

-30...105 °C (-22...221 °F)

T-SENSOR CONNECTION

two-wire

PROTECTION CLASS

IP65 / NEMA 4

INSULATION RESISTANCE

typ. > 100 MΩ at 20 °C (68 °F)
