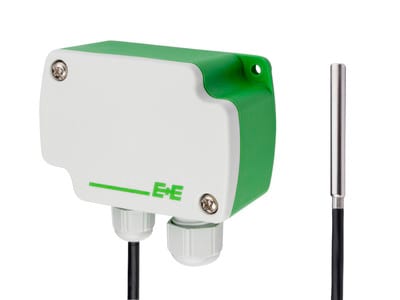

EE471 sensors are used for temperature measurement in applications where a separate housing with remote probe is required for installation.
In addition to active outputs 0-10 V or 4-20 mA various types of sensing elements such as Pt1000, NTC10k or Ni1000 are available for passive temperature measurement.
Due to an innovative cable outlet and housing concept a high protection class IP65 is provided. Productspecific information for the remote probe is printed all along the cable.
External mouning holes
Bayonet screws
Product-specific information
IP65 cable outlet
|
MEASURING RANGE PASSIVE OUTPUT |
-30…105 °C (-22...221 °F) |
|
T-SENSOR CONNECTION |
Two-wire |
|
MEASURING RANGE ACTIVE OUTPUT |
Remote probe: -30...105 °C (-22 ...221 °F) Encloser: -30...70 °C (-22...158 °F) |
|
ACCURACY ACTIVE OUTPUT |
±0.3 °C (±0.54 °F) |
|
PROTECTION CLASS |
IP65 / NEMA 4 (enclosure and probe) |
|
INSULATION RESISTANCE |
> 100 MΩ at 20 °C (68 °F) |
|
OUTPUTS |
0-10 V or 4-20 mA |
|
POWER |
24 V AC/DC |
