Data sheet

EE300Ex-XT

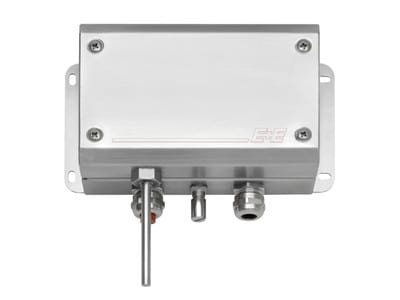

The EE300Ex temperature transmitter is dedicated for measurement in explosion hazard areas.

It complies with the classifications for Europe (ATEX), International (IECEx) andUSA / Canada (FM), and can be employed in gas and dust explosion hazard areas.

The intrinsically safe EE300Ex can be installed in the explosion hazard area even in zones 0 / 20. The 2-part enclosure facilitates eady installation and dismounting for calibration without time-consuming wiring.

The robust and easy-to-clean stainless steel housing is appropriate for use in the pharmaceutical and chemical industries.

The intrinsically safe temperature transmitter feature two 4-20 mA output in 2-wire technology.

  • For gas and dust applications

  • Direct mounting in zones 0 / 20

  • Maximum precision up to 200°C (392 °F)

  • Pressure-tight up to 20 bar (290 psi)

  • Wall mount or with remote probe model

MEASURING RANGE

-70...200 °C (-94…392 °F)

ACCURACY

±0.2 °C (±0,36 °F)

PRESSURE RANGE

0.1...20 bar (1.45…290 psi)

OUTPUT

4-20 mA (2-wire)

POWER

24 V DC
