The EE210 transmitter from E + E ELEKTRONIK meets the most demanding requirements of climate control applications.

In addition to high accuracy measurements of relative humidity and temperature, the EE210 calculates dew point temperature, absolute humidity, and mixing ratio.

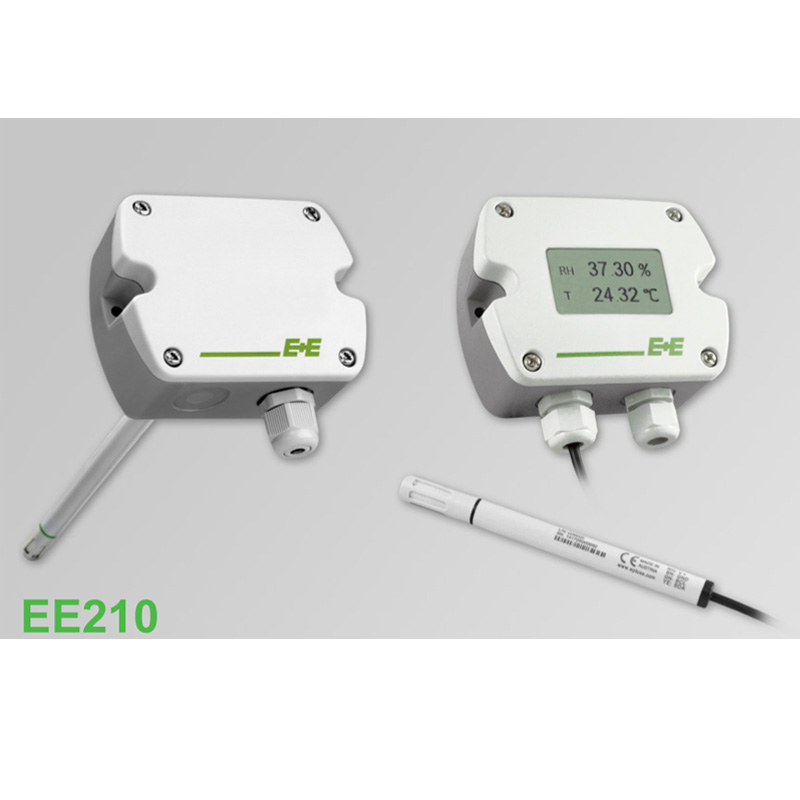

The EE210 is available for wall mounting, duct mounting and also with separate probe mounting.

The case design minimizes installation costs and provides outstanding protection against pollution and condensation.

All measured and calculated values ​​are available on the BACnet MS / TP or Modbus RTU interface; two of the measured and calculated values ​​are available on the analog voltage or current outputs, while up to three values ​​can be displayed simultaneously on the optional display.

The EE210 stands out for its excellent performance in polluted and aggressive environments thanks to the combination of the electronics completely encapsulated in the measuring probe and the long-term stability of the HCT01 sensor with its E + E protective coating.

With the optional configuration kit, the user can adjust the parameters of the Modbus interface, the output scale and one or two calibration points for humidity and temperature.
