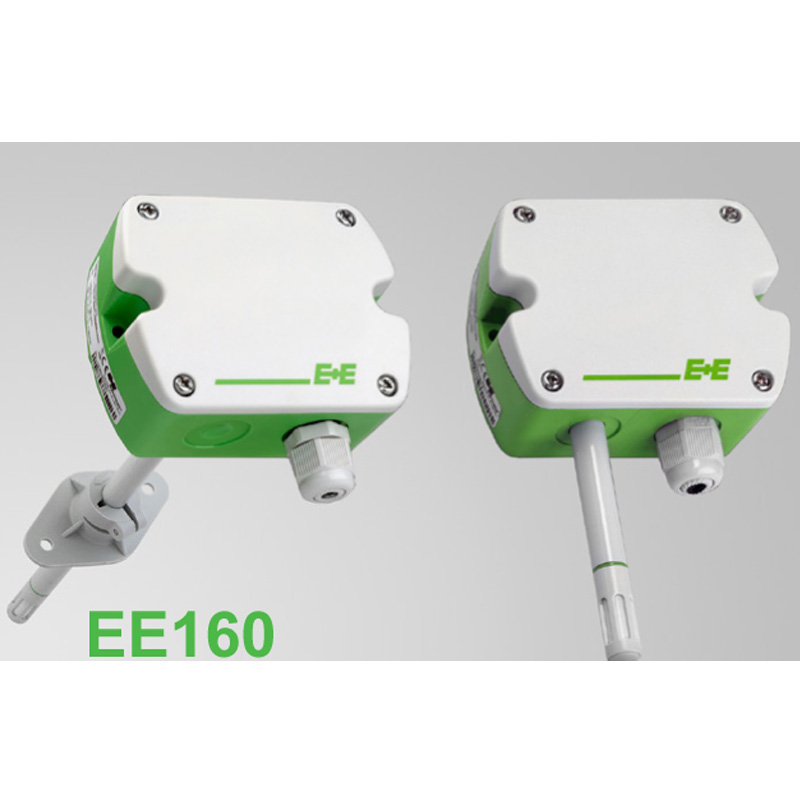

Specially designed for HVAC applications, the E + E Elektronik EE160 transmitter is a cost-effective, highly accurate and reliable solution for measuring relative humidity and temperature.
The case design greatly reduces installation costs and provides maximum protection against fouling, ensuring impeccable operation.
The EE160 incorporates the new E + E HCT01 humidity and temperature sensor, characterized by its excellent long-term stability and resistance to pollution.
In addition to a long experience in calibration, the EE160 provides a measurement with a ± 2.5% H accuracy error. It is available in wall or duct mounting with current outputs, BACnet MS / TP or Modbus RTU voltage.
A configurator allows you to freely select the temperature scale and configure the Modbus parameters. The free download configuration software also allows on-site adjustment of humidity and temperature.
Adaptation to the American market
»Location for a 1/2 conduit cable run
External mounting holes
»Mounting without lid opening
»Electronics protected from construction dirt
»Simple and fast assembly
Components on the inside of the board
»Optimum protection against mechanical damage during installation
Relative humidity
Sensor ____________________________ Sensor E + E HCT01-00D
Measuring range ____________________ 10 ... 95% RH
Accuracy error at + 20 ° C _____________ ± 2.5% RH
Influence of temperature ______________ typ. ± 0.03% RH / ° C
Temperature
Sensor _____________________________ Pt1000 (tolerance class B, DIN EN 60751)
Temperature accuracy error at 20 ° C _____ ± 0.3 ° C
