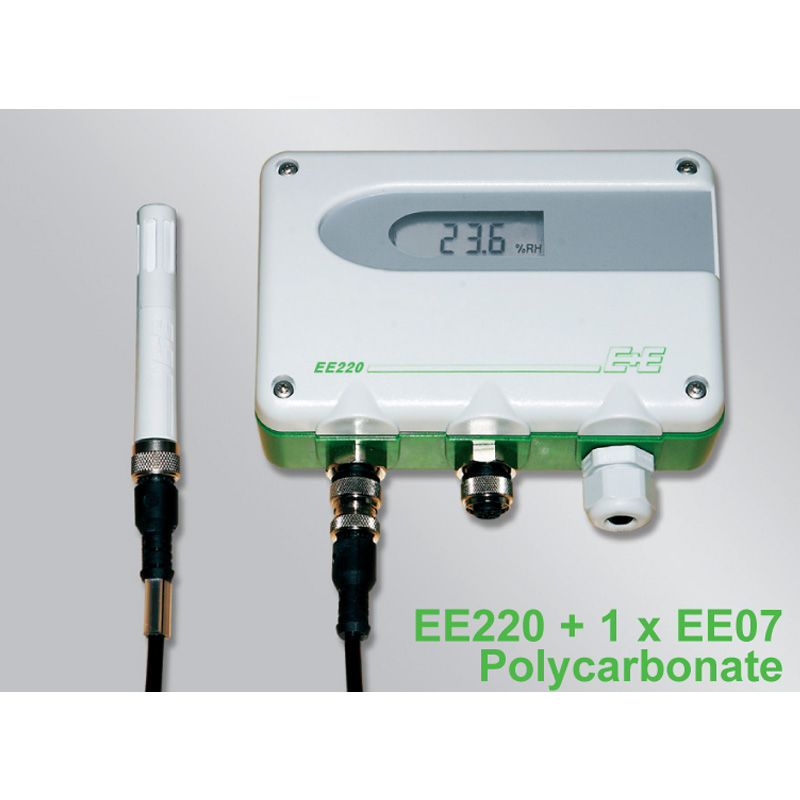

The innovative modular EE220 Relative Humidity (RH) and Temperature (T) Transmitter is composed of a base housing and different connectable and interchangeable probes.

The base case allows the use of a combined EE07 HT / T probe or two separate EE07 probes, one for relative humidity and one for temperature. EE07 probes are available with polycarbonate or stainless steel housings and can be connected directly to the transmitter or via an M12 cable up to 10m in length. As an option, a kit facilitates the assembly of probes in ducts.

The basic housing EE220 is available in polycarbonate or metal version, wall mounting or rail mounting (DIN EN 50022). For the pharmaceutical and agri-food industries the device incorporates a cable entry from the back.

The measured values ​​are available on two analog outputs in voltage or current (2 wires 4 - 20 mA) and on the optional display.

An adjustment in one or two points of relative humidity and temperature can easily be achieved by means of push buttons on the housing of the EE220. The EE07 probes can be adjusted individually using the EE-PCA configuration adapter (see data sheet EE07). For surface moisture monitoring or early condensation detection the EE220 can integrate the EE03 humidity / temperature module (see data sheet EE03).
