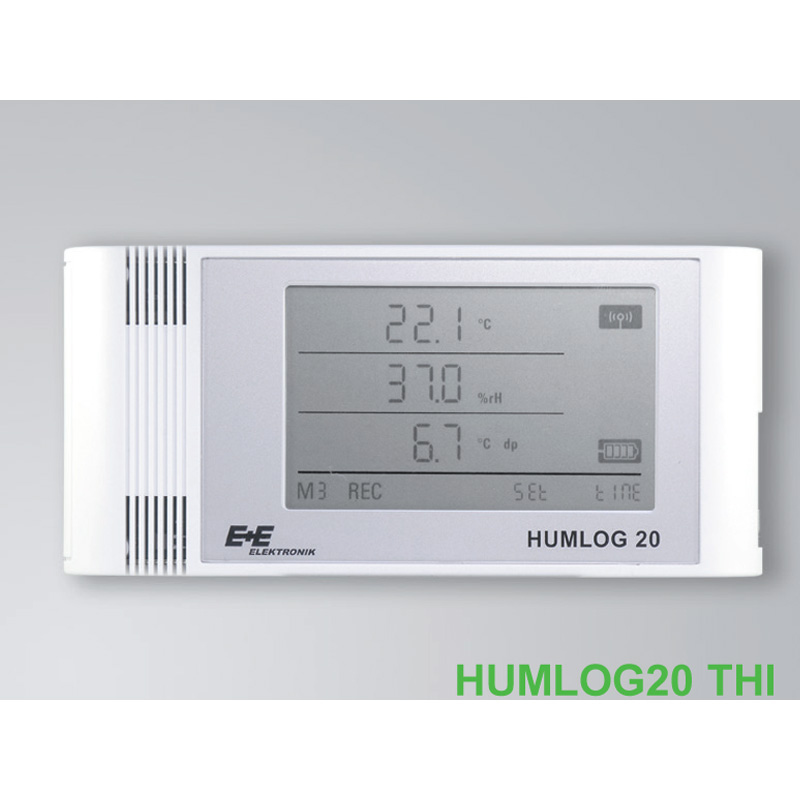

The HUMLOG20 facilitates accurate and professional recording of relative humidity, temperature, atmospheric pressure and CO2 levels.
The long life of the batteries and the large memory capacity allow recordings for long periods.
The configuration of the recorder and the evaluation of the recorded measurements are simple thanks to the software SmartGraph3 which is included in the delivery.
The Ethernet interface makes the Humlog20 a network device and gives it great flexibility in data transmission.
For applications with different requirements, models THI, THIP, TCO and E are available. The E model offers the greatest flexibility with an analog and digital interface for external probes.
High capacity memory
Big screen
USB and LAN interface
Network capacity
Powerful data analysis software
Dimensions _________________________ Length 166mm, Width 78mm, depth 32mm
Housing / Protection class _____________ ABS plastic / IP40
Battery life THI, THIP: _______> 1 year
TOC, E: _______> 4 months
Memory capacity ________________ 16 MB, 3,200,000 measured values
LCD screen __________________________ size 90x64 mm
Mass _____________________________ approx. 250g
Interfaces ___________________________ USB, LAN (Ethernet)
Sampling period ______________ 10 / 30s, 1/10/12/15 / 30min, 1/3/6/12 / 24h
Registration period _______________ 1/1012/15 / 30min, 1/3/6/12 / 24h
