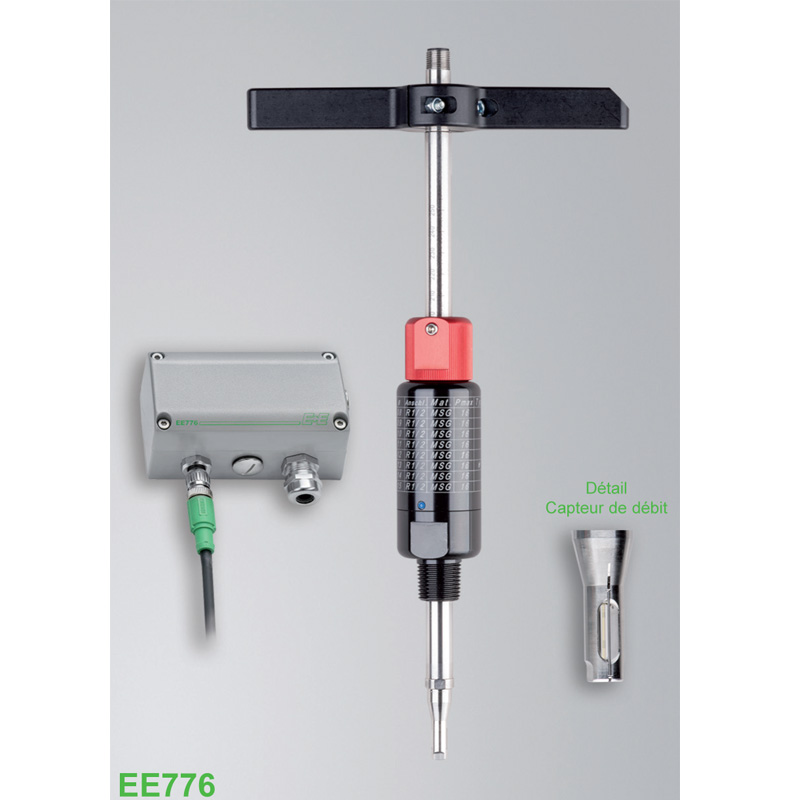

The EE776 flowmeter is based on thermal mass flow measurement and is ideal for measuring compressed air and gas flows in DN50 (2 ") to DN700 (28") pipelines.

With the EE776, the consumption of compressed air, nitrogen, CO2 or other non-corrosive and non-flammable gases can be measured up to a pressure of 16 bar.

Patented back protection system for safe mounting:

The EE776 flowmeter meets new standards in terms of safety and ease of installation. The patented anti-return protection system combines 3 functions in 1 single device:

Anti-return protection:

The sensitive element can only be pushed in one direction during installation. He can not get out alone even if he is unscrewed.

Sealing:

Thanks to an encapsulated O-ring, compressed air can not escape during assembly

Precise positioning:

Precise positioning with respect to insertion depth and orientation is easy to achieve, ensuring accurate measurement results.
